ANTENNA MEASUREMENT CHAMBERS

Antenna Measurement Chambers

NEAR/FAR FIELD RANGES

Planar Near-Field and spherical roll over or gantry azimuths

CATR SYSTEMS

Mini and standard Compact Antenna Test Ranges (CATR)

R&D CHAMBERS

Bespoke solutions including absorber lined ISO shipping containers

FREQUENCY RANGES

Unique to each solution

Engineered for accuracy. Purpose-built for versatility

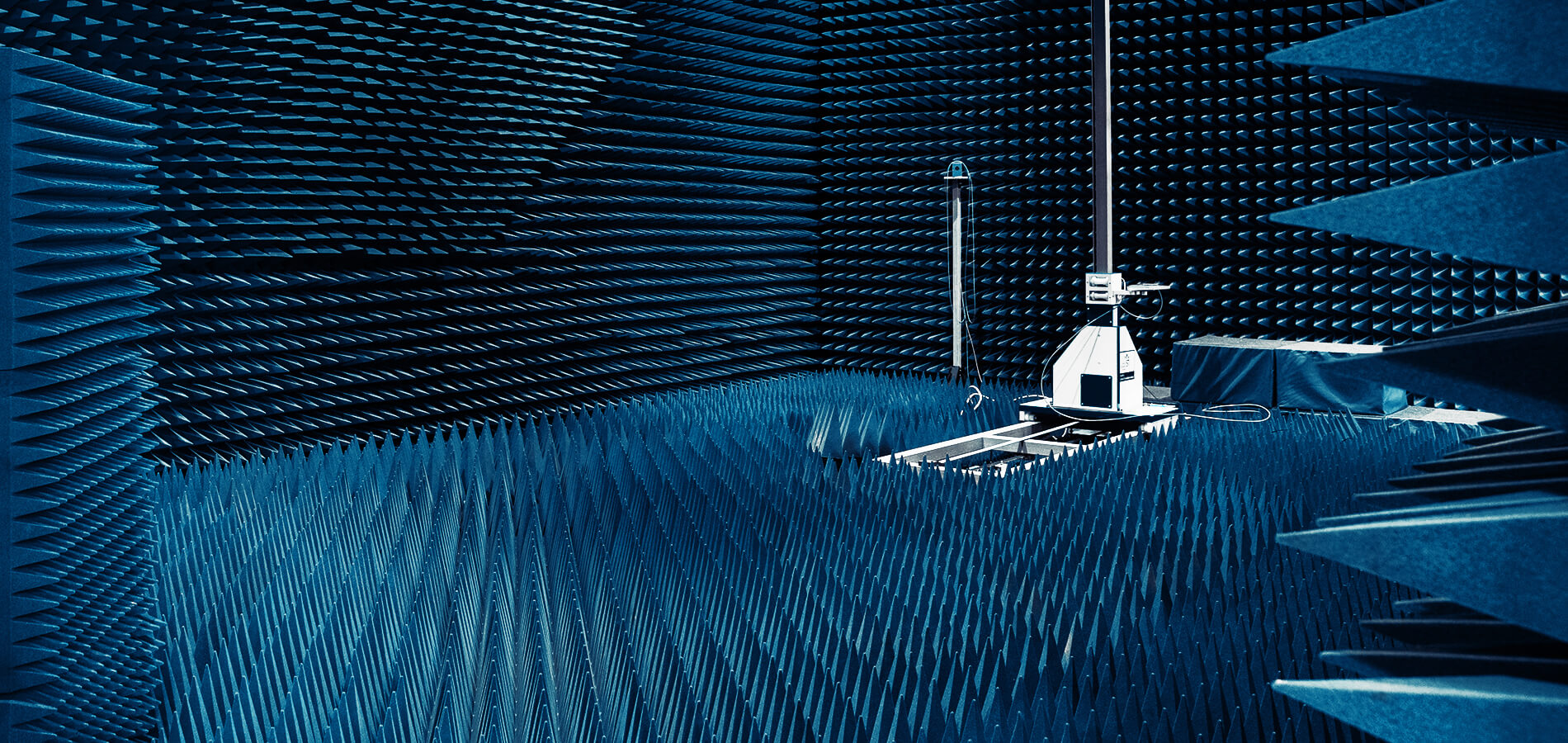

Global EMC’s antenna measurement chambers are designed and built to meet the exacting performance demands of antenna testing.

Whether the application is telecommunications, radar cross-section or other wireless technologies, each chamber is uniquely configured to suit the antenna(s) under test. Adaptable for military, marine, aerospace and commercial applications, every facility provides a reliable, repeatable environment for antenna testing and characterisation.

KEY FEATURES

Anechoic lining

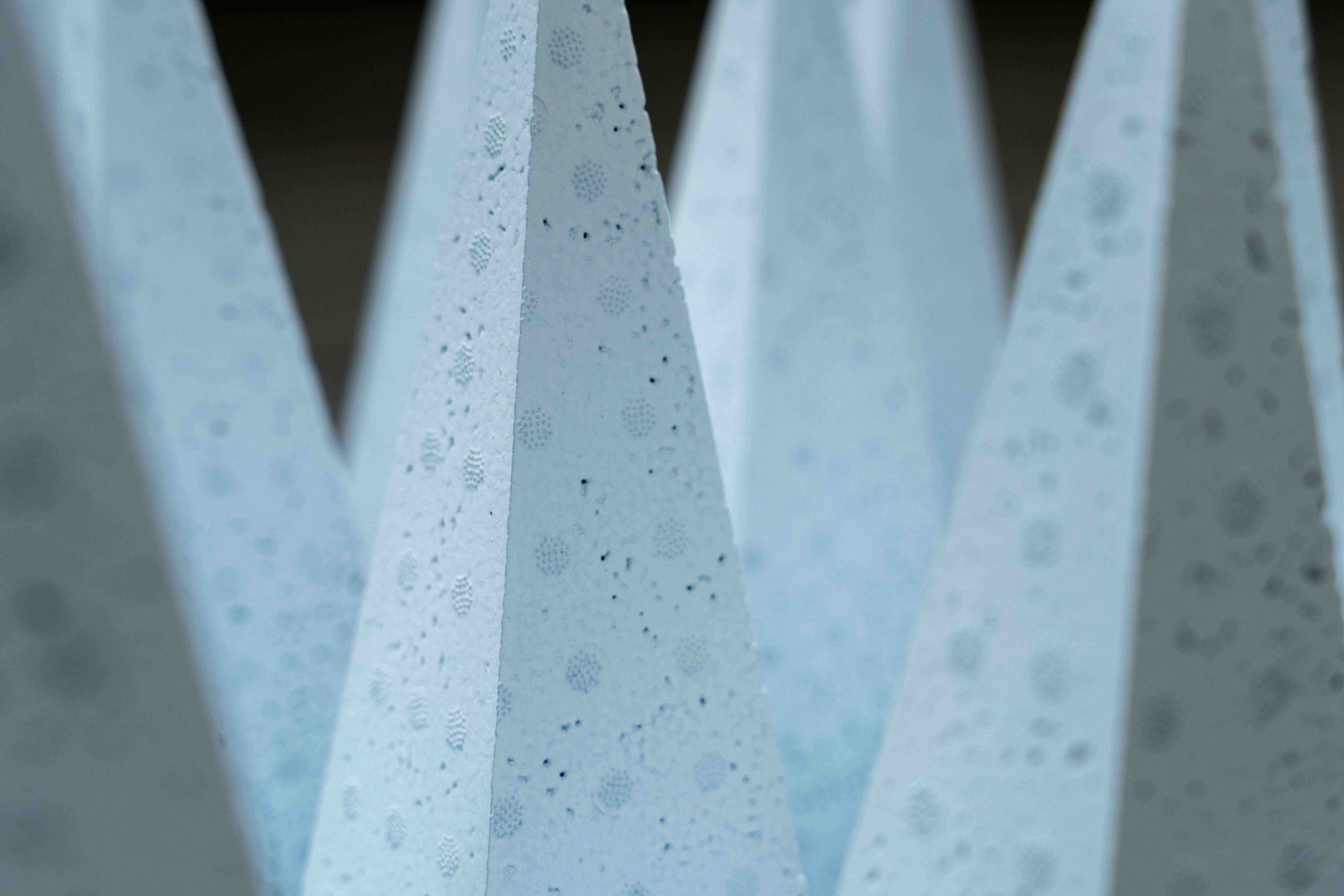

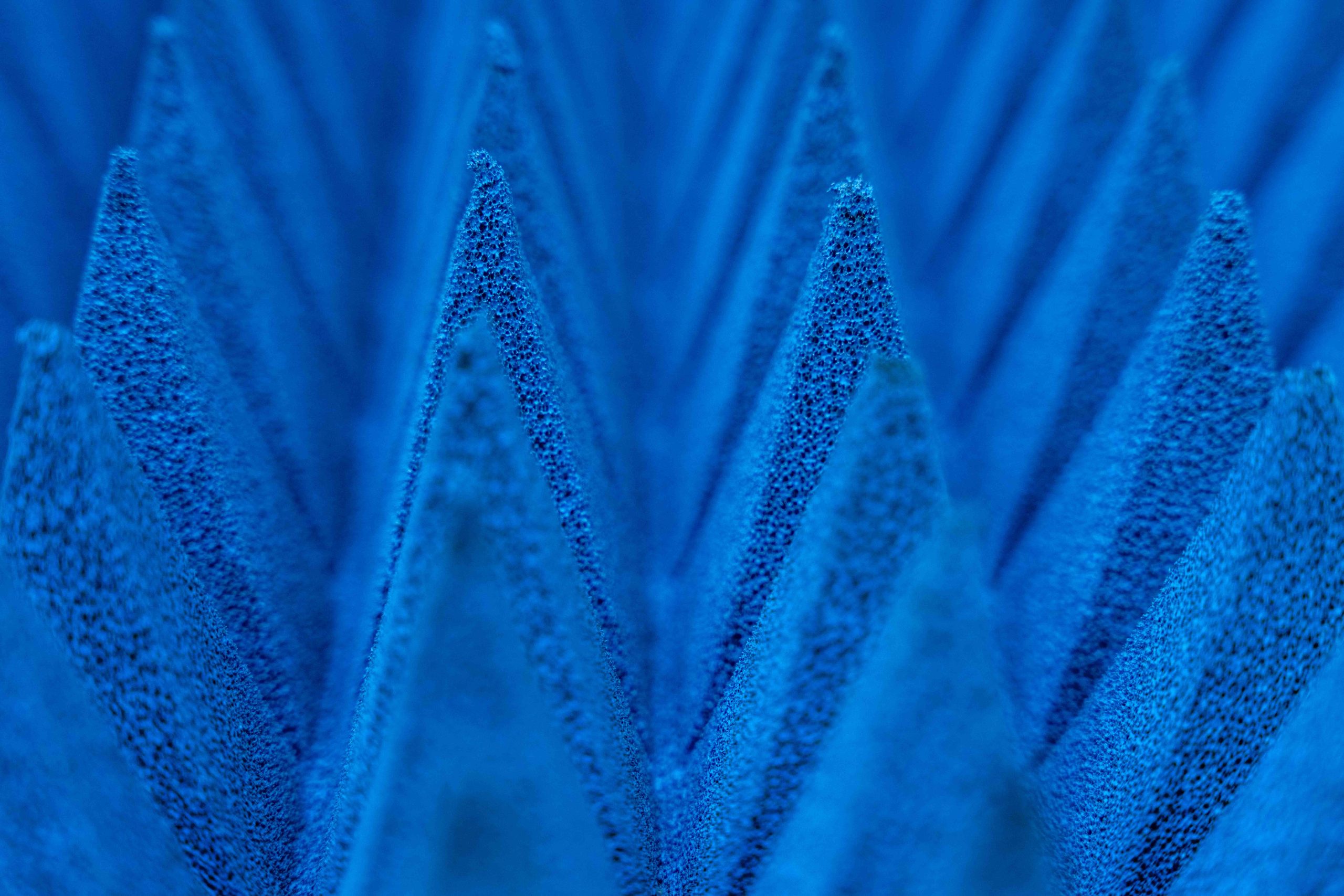

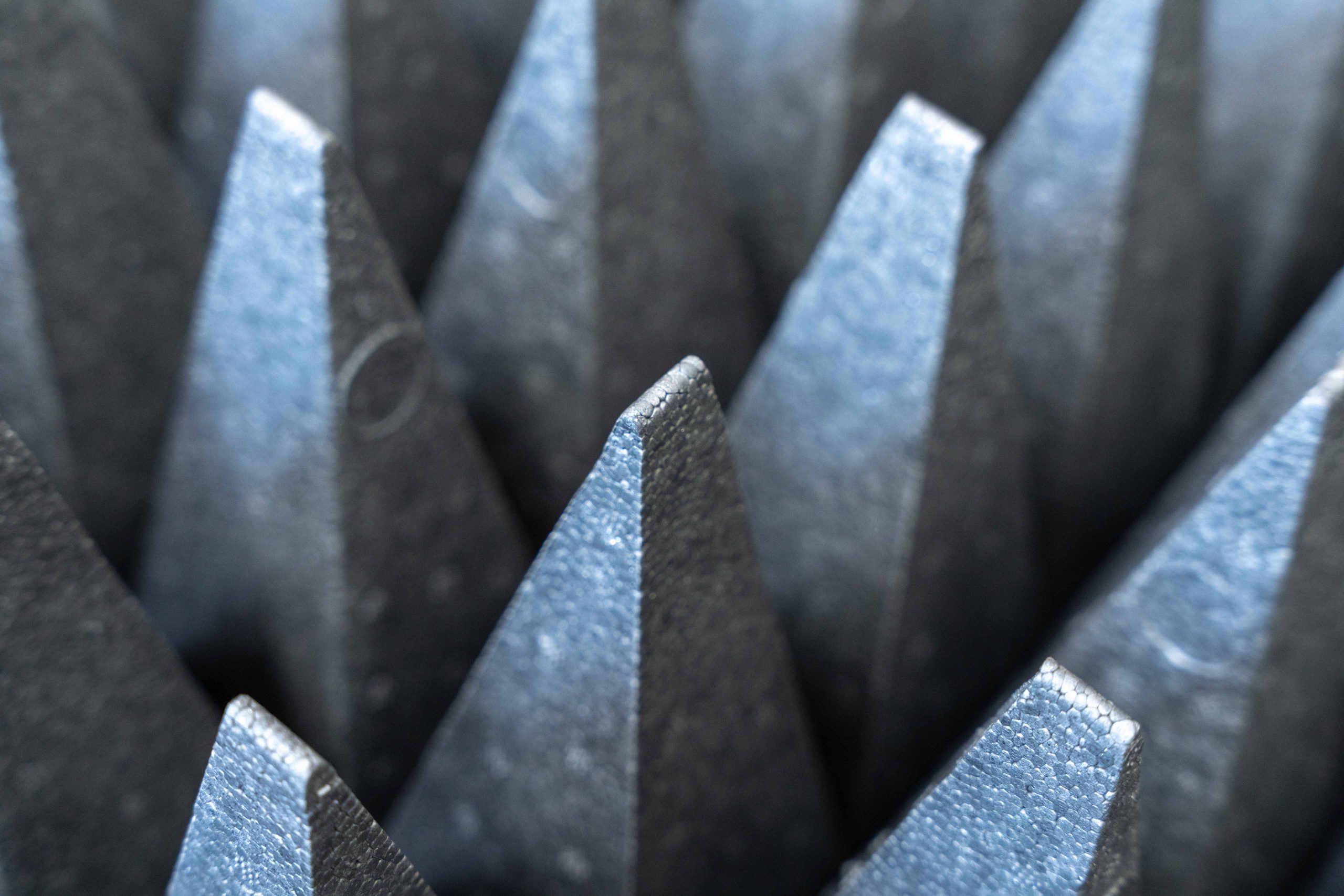

Pyramidal absorbers fitted to all walls, ceiling and floor, with absorber length specified to the required frequency range and performance.

High-performance shielding:

Faraday cage shielded enclosure verified to EN 50147-1, available with shielding performance up to 40 GHz.

Measurement geometries

Configurable for near-field (NF), far-field (FF) and compact antenna test range (CATR) systems.

Walkway absorbers

Specialist walkway absorbers from each door opening to test positions – access without compromising anechoic performance.

Low-maintenance shielded doors

Industry-leading shielded doors with durable copperberyllium knife-edge seals

Antenna positioning equipment

Field probe positioners, turntables and antenna positioning systems available as part of the turnkey installation.

Integrated services

Penetration panels and static ventilation panels included as standard.

Fire-safety compliant absorbers

GDS range absorbers compliant to NRL8093 parts I, II and III.

Independently certified

Tested and verified by a UKAS-approved ISO 17025 test body.

View full specification

CHOOSE THE ROOM FOR

Universities

Research and development facility for educational purposes, or outreach to external businesses.

Wi-Fi

Testing of wireless technologies and communication systems, including Wi-Fi and telecommunications.

5G Technologies

Development of next-generation 5G technologies, with anechoic performance up to 86 GHz and antenna positioner equipment available.

Shielding

High-performance RF shielding to provide an inert environment, free of unwanted ambient interference and signals.

Shape around your products

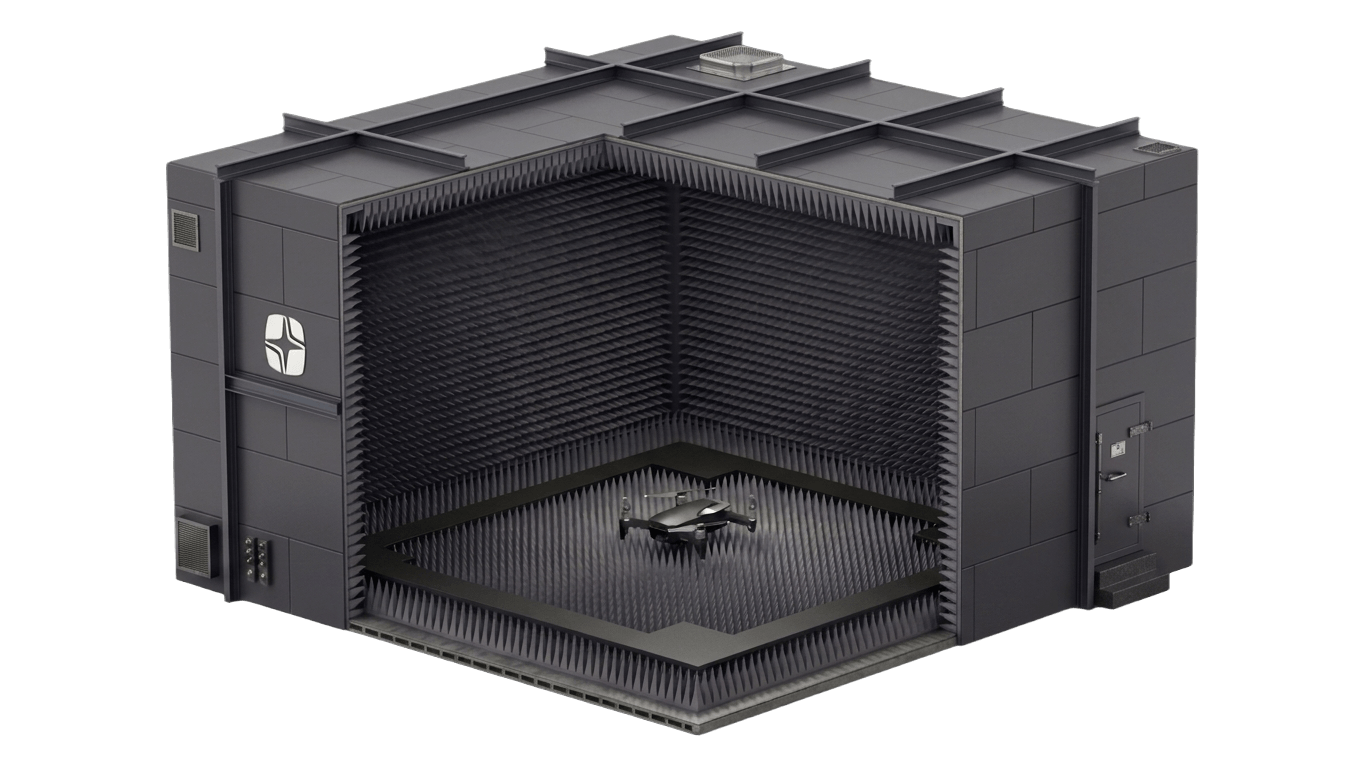

Each antenna measurement chamber is uniquely designed around the antennas under test and the application. Whether you require a Near/Far field test range, CATR solution or just an anechoic lined chamber, we provide the solution needed. Please visit Antenna System Solutions for further information

Asysol – Antenna Measurement Systems

Partnered for turnkey success

Global EMC delivers complete antenna measurement facilities in partnership with Antenna Systems Solutions (ASYSOL), a European specialist in antenna metrology for the aerospace, automotive, commercial, and defence sectors. Global EMC designs and constructs the shielded anechoic chamber — the controlled RF environment at the heart of every measurement facility — while ASYSOL provides the precision positioners, test antennas, and measurement software that complete the range. The result is a single, turnkey solution: one point of contact from initial specification through to a fully commissioned, validated antenna test facility, with the chamber, positioning system, and software engineered to work together from day one.

Visit Asysol

Where interference ends.

Have a question or need a bespoke antenna measurement chamber solution?

Contact our team to discuss your requirements and discover how we can support your project.
