COMPLIANT EMC TESTING

Fully Anechoic EMC Test Chambers

COMPLETE EMC TESTING

Compliant test facility to CISPR 16-1-4 and IEC/EN 61000-4-3

COMPACT AND COST EFFECTIVE

Less height needed than semi-anechoic versions.

FULLY ANECHOIC ROOM (FAR)

Lined with anechoic absorber to all internal surfaces.

PRODUCTS FASTER TO MARKET

Shorter test time thanks to single configuration and fixed antenna.

Test more, wait less

What sets a fully anechoic chamber apart from a semi-anechoic design? Anechoic material across the majority of the floor. By eliminating ground reflections, the chamber removes the need for the 1.0m–4.0m antenna sweep during emissions testing. Instead, a single fixed antenna height stays locked on the centre of the test volume.
The result is two clear advantages:
Faster testing, higher throughput. No antenna sweep means radiated emissions testing is quicker and more efficient, letting you move more products through in less time.
Smaller footprint, lower cost. A fixed antenna height allows for a lower ceiling, cutting both your initial capital outlay and the space needed to install the chamber in your building.

KEY FEATURES

Measurement distance

Chambers are available in two configurations: one sized for measurements at a 3 metre test distance from the EUT and a larger version for measurements up to 5 metres.

Radiated immunity chamber compliance

Compliant with the test site requirements of IEC/EN 61000-4-3 across a frequency range of 80 MHz to 6 GHz, with optional testing up to 18 GHz.

Radiated emissions chamber

Compliant for test site requirements according to CISPR 16-1-4

RF shielding effectiveness

Provides >100 dB of RF shielding as standard.

Integrated services

Lighting, power for equipment under test, penetration panels and ventilation panels all included.

CHOOSE THE CHAMBER FOR

Emissions

Suitable for compliant emissions measurements.

Immunity

Compliant radiated immunity testing to a wide range of standards.

Components

Best suited for products and EUTs that do not require wheeled access into the test chamber.

Fully Anechoic

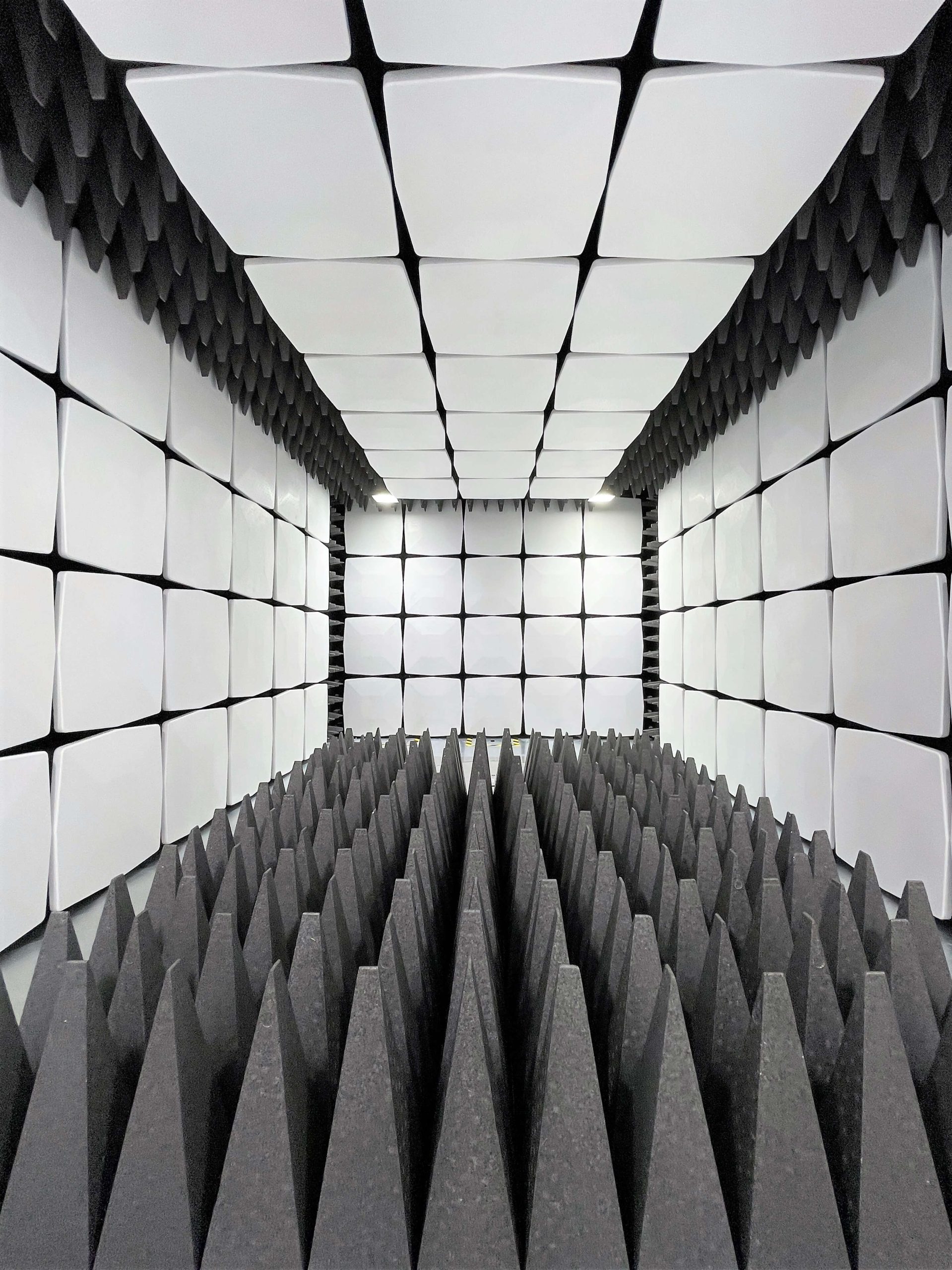

Fully anechoic test chamber with the latest generation anechoic absorbers to all walls, ceilings and floor.

The best place to start is with a conversation

The versatility and testing speed of the fully anechoic test chamber are unmatched by other testing facilities. It performs EMC emissions and immunity testing quickly and seamlessly in one test chamber with only a minimal reconfiguration between tests. This reduces delays and lead times, and increases the throughput of products.

We know that no two projects are the same. Every product, test standard and facility has its own demands, which is why we offer a fully bespoke service built around your exact needs. From the dimensions of your chamber to the standards you need to meet, we design and manufacture a solution that fits your products, your space and your goals.
