EMC TEST CHAMBERS

Pre-compliant EMC Test Chamber

ELIMINATE RE-TEST COSTS

Catches issues before final approval.

IDEAL FOR R&D

Test, modify and quickly re-test.

WHEN SPACE MATTERS

Compact, cost-effective on-site testing.

ANECHOIC OPTIONS

Semi-anechoic or fully anechoic layouts available.

Convenient, Cost-Effective and Compact

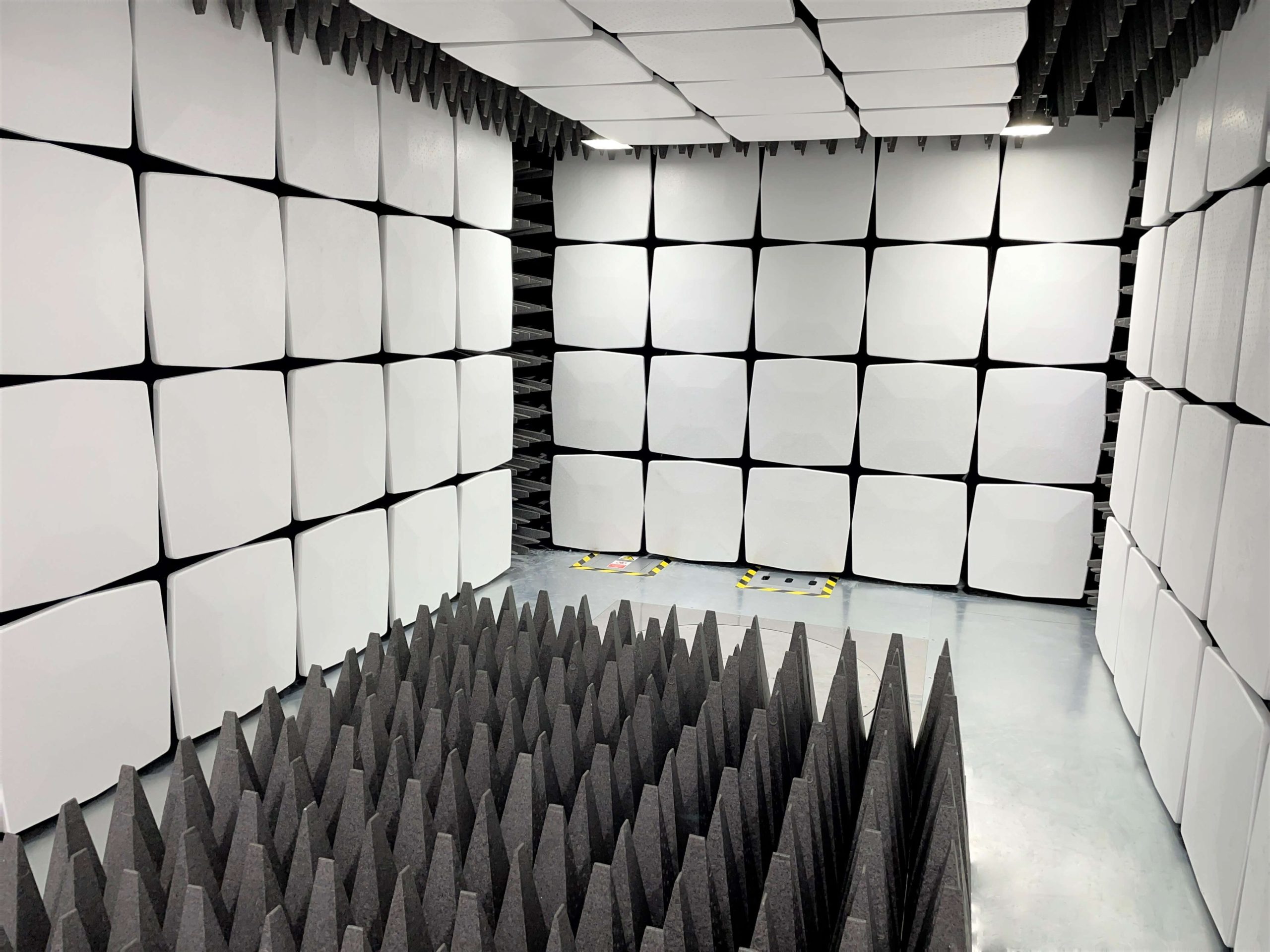

The pre-compliant EMC test chamber is our compact, space-saving test chamber, engineered to deliver dependable and repeatable EMC measurements. A cost-effective solution, it gives you an on-site facility for research and development, allowing you to identify and resolve potential issues early and prepare your products for final compliance testing with confidence.

Despite its reduced footprint, the chamber retains the 3-metre measurement distance required between the antenna and the equipment under test (EUT), maximising the available space to provide pre-compliant emissions testing and compliant immunity testing.

Available in semi-anechoic and fully anechoic absorber configurations.

KEY FEATURES

3m measurement distance

Supports up to a 3m measurement distance between the antenna and equipment under test (EUT).

Radiated immunity

Compliant for the test site requirements of IEC/EN 61000-4-3 across a frequency range of 80 MHz to 6 GHz, with optional testing up to 18 GHz.

Radiated emissions

Pre-compliant for test site requirements according to CISPR 16-1-4.

Anechoic configuration

Available in two configurations – fully anechoic rooms (FAR), with absorbers on all surfaces, and semi-anechoic chambers (SAC), which include a reflecting ground plane on the floor and absorbers on the walls and ceiling.

Bespoke configuration

Test facilities can be customised and configured to meet your exact requirements.

CHOOSE THE CHAMBER FOR

3 Metre

Measurements of up to 3 metres between the antenna and equipment under test (EUT).

Pre-compliant

Pre-compliant radiated emissions measurements.

R&D

This test facility is the perfect solution for the research and development of new electrical and electronic products.

Immunity

Compliant radiated immunity according to IEC/EN 61000-4-3.

What is pre-compliance testing?

Pre-compliance testing is designed to replicate the conditions of a fully accredited, compliant test laboratory as closely as possible. Global, European and national standards define the required tests and performance criteria for each electrical or electronic product. Carried out throughout product development, ongoing pre-compliance testing helps identify potential issues that could prevent a new product from meeting the relevant standards during final compliance testing.

Using a pre-compliant test chamber provides a dependable, trustworthy indication that a product is likely to pass once submitted for final approval.

This gives manufacturers an affordable, long-term means of developing products that meet EMC radiated emissions and immunity standards, without the continual reliance on external test laboratories. The result is reduced cost, faster development and fewer project delays caused by failures and re-testing.

The best place to start is with a conversation

Each pre-compliant EMC test chamber is designed specifically for your requirements and the space available. Using 3D modelling and modular shielding design, we design and build every chamber to maximise the space available and give the highest performance and consistent measurements.

We know that no two projects are the same. Every product, test standard and facility has its own demands, which is why we offer a fully bespoke service built around your exact needs. From the dimensions of your chamber to the standards you need to meet, we design and manufacture a solution that fits your products, your space and your goals.

Please fill in the ‘Contact Us’ form below and one of our experts will get in touch. We’ll discuss what you’re working on and help you find the right solution, with no obligation.
